Call or write and you can configure the machine yourself!
We will advise you so that you do not pay for unnecessary items and, on the other hand, that the machine suits you.

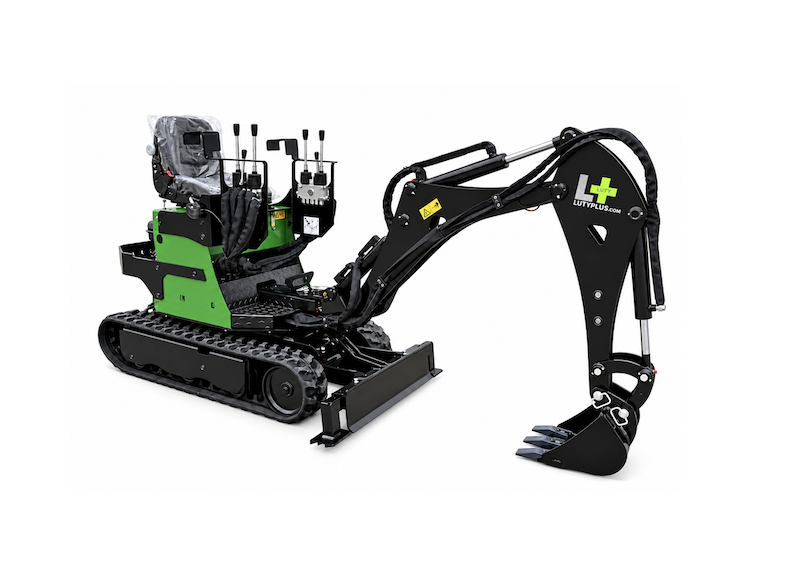

Basic Technical Specification of Mini Excavator MPT-82-1500
- Base weight: 775 kg (Option to increase to 950 kg with ballast)
- Overall width: 830 mm. (We already supply extendable "elephant leg" feet on the front blade as standard, for even greater stability)
- Total length: 2400 mm
- Max. digging depth (without quick coupler and without telescopic boom): 1700 mm
- Max. digging depth (with quick coupler and without telescopic arm): 1900 mm
- Max. digging depth (with quick coupler and telescopic boom): 2300 mm
- Reach of arm: 2300 mm
Shoulder
- Fully rotatable turret with no stops: 360° professional machined swivel/crown
- Digging holes (with a locking pin) in the base: -55° / 0° / +55°
- Hydraulically extendable dipper stick option (offset digging): -55° / 0° / +55° for an additional charge of CZK 3,900 excluding VAT
- Maximum lifting height: 2200 mm
- Tensile strength: 1.5 tons
Motor
- Always air-cooled engine with electric starter.
- We supply several types of U.S.-made KÖHLER professional gasoline engines from 9 HP to 14 HP.
Hydraulic system
- 2x Hydraulic pump 3.2cc, larger with higher flow 4.9cc also available
- Operating pressure for all pumps is the same: 160 bar
- Flow at 3600 rpm: 23 l/min or with a larger pump 34.5 l/min
- Large hydraulic tank capacity: 40 l (Hydraulic oil HV46 fill is 35 l)
Contact us We will send you a clear and non-binding offer of possible machine configurations, including prices and optional accessories. If you need help with anything, call or write, we'll be happy to answer your questions. Fast delivery time! Machines in stock.
Note: With us, with every model "MPT-"professionally machined swivel/crown, We do not use other lower-quality materials.
2-circuit hydraulics powerful pumps
Weight capacity up to: 140 Kg
Accessories
Pavel –
Greetings, I don't own an excavator yet, but I've played with one in Austria... a small toy for big boys... excavators are low-maintenance, have good fuel economy, and fit everywhere... you're missing specific videos for each and every excavator... they would be very useful...
yard –
Hello, do you have videos for each excavator separately for a better understanding of the size, etc.???
Martin Lutovsky –
Yes, take a look here: https://mikrobagry.cz/videa/
Miloš –
Hello, I'm interested to know if it can move on a slope, if so, at what angle, and if the tilt bucket has side tilting for grading. Miloš
Martin Lutovsky –
Thank you for your inquiry. Our safety instructions specify a maximum lateral tilt of 27% or 15°, and a maximum longitudinal tilt of 18% or 10°.
Regarding the tiltable ditching bucket, yes, we now also offer a hydraulic tiltable ditching bucket with up to 45° tilt on each side. This new ditching bucket is 80 cm wide. It works great!
Václav Kerles –
Hello, we want to thank you for the perfect machine. It's only been on our ranch for a week, but it's already done a lot of work. Starting with building fences, loading manure, to landscaping and transplanting trees. And we still haven't reached the machine's limits; it still surprises us with what it can do. My wife and I agree that buying this mini excavator was our best investment. Thanks again.
Jaroslav Bryška –
Hello. My son and I purchased the MPT 82 – 1500 Sphinx mini excavator from you. It has proven to be an excellent helper with building our house. We learned to operate it within a few hours and have nothing but praise for it. Simple controls, low fuel consumption and noise level, comfortable seating, and a beautiful design. There are many more advantages. We haven't tested the front loader bucket yet, but we believe it will be a pleasure to work with.
A big thank you to Mr. Řoutil for his kindness, expertise, and professional approach. Jaroslav and Vilém Bryška
Radek Prochazka –
Hello, I purchased the MPT 82 – 1500 Sphinx machine from this company in April 2019 and I can only praise it. I also have a tilt bucket for the excavator, which also works great. I only had to buy an additional rear frame and weights because a filled tilt bucket is really heavy to the side. I must add that I was approached several times to dig something after another excavator that simply couldn't or wouldn't get into certain places :-). This little cat can handle a lot and has been really brutally tested several times to the point where I felt sorry for it, but it's a huge worker. So, great satisfaction and actually fun too!!! I agree with Mr. Bryška that Mr. Řoutil is a very helpful and willing professional with always perfect communication! Wishing the micro-excavators success!!!
Martin Chytil –
Good day. In June 2022, I purchased a mini-excavator MPT 82 – 1500 Sphinx, and I'm very satisfied so far. The excavator does its job within its capabilities; it's a great helper! I use it in the garden, yard, for leveling soil, and various digging jobs; so far, without any problems. And at the same time, it's fun to work with the excavator 💪👍.
